Walkie Electric Pallet Truck ELEP-15E-DC

Enquiry Item

Description

Logsmith Walkie Electric Pallet Truck

ELEP-15-DC-1200*685 (Yellow RAL 1028)

Electric Pallet Jack • Forklift • Lift Truck • Service Lift


Brand	Logsmith
Model	ELEP-15E-DC
Load capacity	1150 Q (kg)
Service weight (Incl. battery)	245 kg
Fork height, lowered	85 h13 (mm)

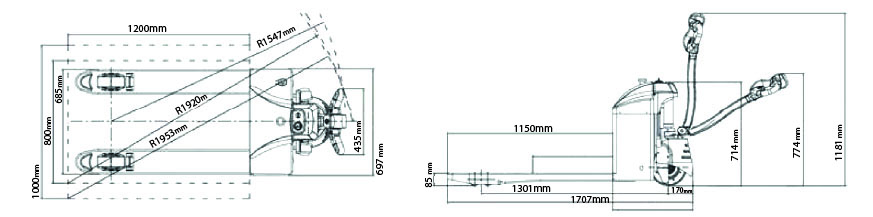

Overall length	1707 l1 (mm)
Overall width	685 b1/ b2 (mm)
Fork spread	560 b5 (mm)
Aisle width, 1000×1200 pallet crossways	1953 Ast (mm)
Aisle width, 800×1200 pallet lengthways	1920 Ast (mm)
Outer turning radius	1547 Wa (mm)
Travel speed, laden/ unladen	3/3.5 km/ h
Maximum gradeability, laden/ unladen	S2 5 min. 5/7 %
Battery voltage/ rated capacity (5h)	24/85*2 V/ Ah

Out Of Stock

This product is out of stock, submit your email and we will update once it restock.

Description

Walkie Electric Pallet Truck ELEP-15-DC-1200*685 (Yellow RAL 1028)
• DC Power (0.63)/ Electric Lift Motor (0.8) - Cap. 1.5 Tons.
• Stepless speed control, emergency stop/ reverse/ brake switch.
• Low voltage protection/ hour meter reading/ battery level indicator.

Warranty
3 months warranty against manufacturer’s defects not covering wear and tear or breakage which is being
misused beyond the recommended load capacity or any kind of unforseen dispute on the products.

12 months warranty on the hydraulic pump unit not covering misuse or any kind of unforseen dispute on the products.
